Data Exercise 2.2: Using OSDF for outputs

This exercise will use a Minimap2 workflow to demonstrate the functionality of OSDF for transferring input files to jobs on OSG.

As presented in the Data lecture, for submitting multiple jobs that require larger files, OSDF not only reduces the load on the OSPool network but also keeps a copy of the files in different caching sites, which results in faster transfer of files to the Execution Point.

OSDF is connected to a distributed set of caches spread across the U.S. They are connected with high bandwidth connections to each other, and to the data origin servers, where your data is originally placed.

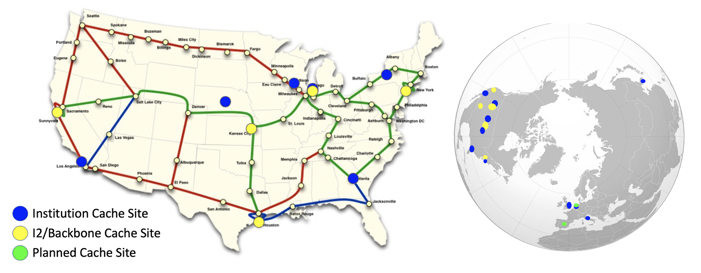

OSDF Map

Setup

  • Please make sure that you are logged into ap40.uw.osg-htc.org.
  • Create a folder named minimap2-read and cd into the directory
  • All the required files for this lesson are located at /ospool/ap40/osg-staff/tutorial-ospool-minimap/
  • Copy all the files and folders into the minimap2-read directory.

File Sizes

  • What are the contents and the size of the data and software directories that you copied?

Software Setup

For using Minimap2, you will need a container of minimap2. The container is provided in the /ospool/ap40/osg-staff/tutorial-ospool-minimap/software directory.

Prepare files for the job

Minimap2 compares and aligns large pieces of genetic information, like DNA sequences. This is useful for tasks like identifying similarities between genomes, verifying sequences, or assembling genetic data from scratch. For this exercise, we will just do an indexing using the refern

Place files in OSDF

There are some files we will be using frequently that do not change often. One example of this is the apptainer/singularity container image we will be using for run our minimap2 mappings. The Open Science Data Federation is a data lake accessible to the OSPool with built in caching. The OSDF can significantly improve throughput for jobs by caching files closer to the execution points.

[!WARNING] The OSDF caches files aggressively. Using files on the OSDF with names that are not unique from previous versions can cause your job to download an incorrect previous version of the data file. We recommend using unique version-controlled names for your files, such as data_file_04JAN2025_version4.txt with the data of last update and a version identifier. This ensures your files are correctly called by HTCondor from the OSDF.

Copy your data to the OSDF space

OSDF provides a directory for you to store data which can be accessed through the caching servers. First, you need to move your minimap2.sif image. For ap40.uw.osg-htc.org, the directory to use is /ospool/ap40/data/[USERNAME]/

Note that files placed in the /ospool/ap40/data/[USERNAME]/ directory will only be accessible by your own jobs.

Second, the exercise will use a reference genome file named Celegans_ref.mmi to map against the FASTQ files. Copy the Celegans_ref.mmi file to your OSDF directory as well.

Considerations

- Why `minimap2.sif` and `Celegans_ref.mmi` placed in the OSDF directory?
- What do you think will happen if you make changes to `minimap2.sif`? Will the caches

be updated automatically, or is there a possiblility that the old version of minimap2.sif will be served up to jobs? What is the solution to this problem? (Hint: OSDF only considers the filename when caching data)

Modify the Submit File and Wrapper

Now, our data are ready. We will need our wrapper script and submit file to use OSDF:

  1. Copy the following contents and save that as minimap2_index.sh

    1
2
    #!/bin/bash
minimap2 -x map-ont -d Celegans_ref.mmi Celegans_ref.fa

  2. Create a submit file to submit the wrapper script minimap2_index.sh as an executable. Use the software using the container_image = "osdf:///ospool/ap40/data/[USERNAME]/minimap2.sif"

  3. HTCondor knows how to do OSDF transfers, so you just have to provide the correct URL in transfer_input_files. Note there is no servername (3 slashes in :///) and is just based on namespace (/ospool/ap40/data/ in this case):

    transfer_input_files = blastx, $(inputfile), osdf:///ospool/ap40/data/[USERNAME]/Celegans_ref.mmi

  4. Confirm that your queue statement is correct for the current directory. It should be something like:

    queue inputfile matching mouse_rna.fa.*

And that mouse_rna.fa.* files exist in the current directory (you should have copied a few them from the previous exercise directory).

Submit the Job

Now submit and monitor the job! If your 100 jobs from the previous exercise haven't started running yet, this job will not yet start. However, after it has been running for ~2 minutes, you're safe to continue to the next exercise!

Note: Keeping OSDF 'Clean'

Just as for any data directory, it is VERY important to remove old files from OSDF when you no longer need them, especially so that you'll have plenty of space for such files in the future. For example, you would delete (rm) files from /ospool/ap40/data/[USERNAME]/ on when you don't need them there anymore, but only after all jobs have finished. The next time you use OSDF after the school, remember to first check for old files that you can delete.
