Requesting an OSG Hosted CE

Schedule a consultation

To ensure that we can meet your research computing goals needs, please contact us at support@osg-htc.org to schedule a consultation.

An OSG Hosted Compute Entrypoint (CE) is the entry point for resource requests coming from the OSG; it handles authorization and delegation of resource requests to your existing campus HPC/HTC cluster. Many sites set up their compute entrypoint locally.

As an alternative, OSG offers a no-cost Hosted CE option wherein the OSG team will host and operate the HTCondor Compute Entrypoint, and configure it for the communities that you choose to support.

This document explains the requirements and the procedure for requesting an OSG Hosted CE.

Running more than 10,000 resource requests

The Hosted CE can support thousands of concurrent resource request submissions. If you wish to run your own local compute entrypoint or expect to support more than 10,000 concurrently running OSG resource requests, see this page for installing the HTCondor-CE.

Before Starting

Before preparing your cluster for OSG resource requests, consider the following requirements:

• An existing compute cluster with a supported batch system running on a supported operating system
• Outbound network connectivity from the worker nodes (they can be behind NAT)
• One or more Unix accounts on your cluster's submit server with the following capabilities:
  • Accessible via SSH key
  • Use of SSH remote port forwarding (AllowTcpForwarding yes) and SSH multiplexing (MaxSessions 10 or greater)
  • Permission to submit jobs to your local cluster.
• Shared user home directories between the submit server and the worker nodes. Not required for HTCondor clusters: see this section for more details.
• Temporary scratch space on each worker node; site administrators should ensure that files in this directory are regularly cleaned out.

• OSG resource contributors must inform the OSG of any relevant changes to their site.

  Site downtimes

  For an improved turnaround time regarding an outage or downtime at your site, contact us and include downtime in the subject or body of the email.

For additional technical details, please consult the reference section below.

Don't meet the requirements?

If your site does not meet these conditions, please contact us to discuss your options for contributing to the OSG.

Scheduling a Planning Consultation

Before participating in the OSG, either as a computational resource contributor or consumer, we ask that you contact us to set up a consultation. During this consultation, OSG staff will introduce you and your team to the OSG and develop a plan to meet your resource contribution and/or research goals.

Preparing Your Local Cluster

After the consultation, ensure that your local cluster meets the requirements as outlined above. In particular, you should now know which accounts to create for the communities that you wish to serve at your cluster.

Also consider the size and number of jobs that the OSG should send to your site (e.g., number of cores, memory, GPUs, walltime) as well as their scheduling policy (e.g. preemptible backfill partitions).

Additionally, OSG staff may have directed you to follow installation instructions from one or more of the following sections:

(Recommended) Providing access to CVMFS

Maximize resource utilization; required for GPU support

Installing CVMFS on your cluster makes your resources more attractive to OSG user jobs! Additionally, if you plan to contribute GPUs to the OSG, installation of CVMFS is required.

Many users in the OSG make of use software modules and/or containers provided by their collaborations or by the OSG Research Facilitation team. In order to support these users without having to install specific software modules on your cluster, you may provide a distributed software repository system called CernVM File System (CVMFS).

In order to provide CVMFS at your site, you will need the following:

• A cluster-wide Frontier Squid proxy service with at least 50GB of cache space; installation instructions for Frontier Squid are provided here.

• A local CVMFS cache per worker node (10 GB minimum, 20 GB recommended)

After setting up the Frontier Squid proxy and worker node local caches, install CVMFS on each worker node.

(HTCondor clusters only) Installing the OSG Worker Node Client

Skip this section if you have CVMFS or shared home directories!

If you have CVMFS installed or shared home directories on your worker nodes, you can skip manual installation of the OSG Worker Node Client.

All OSG sites need to provide the OSG Worker Node Client on each worker node in their local cluster. This is normally handled by OSG staff for a Hosted CE but that requires shared home directories across the cluster.

However, for sites with an HTCondor batch system, often there is no shared filesystem set up. If you run an HTCondor site and it is easier to install and maintain the Worker Node Client on each worker node than to install CVMFS or maintain shared file system, you have the following options:

• Install the Worker Node Client from RPM
• Install the Worker Node Client from tarball

Requesting an OSG Hosted CE

After preparing your local cluster, apply for a Hosted CE by filling out the cluster integration questionnaire. Your answers will help our operators submit resource requests to your local cluster of the appropriate size and scale.

Cluster Integration Questionnaire

Can I change my answers at a later date?

Yes! If you want the OSG to change the size (i.e. CPU, RAM), type (e.g., GPU requests), or number of resource requests, contact us with the FQDN of your login host and the details of your changes.

Finalizing Installation

After applying for an OSG Hosted CE, our staff will contact you with the following information:

• IP ranges of OSG hosted services
• Public SSH key to be installed in the OSG accounts

Once this is done, OSG staff will work with you and your team to begin submitting resource requests to your site, first with some tests, then with a steady ramp-up to full production.

Validating contributions

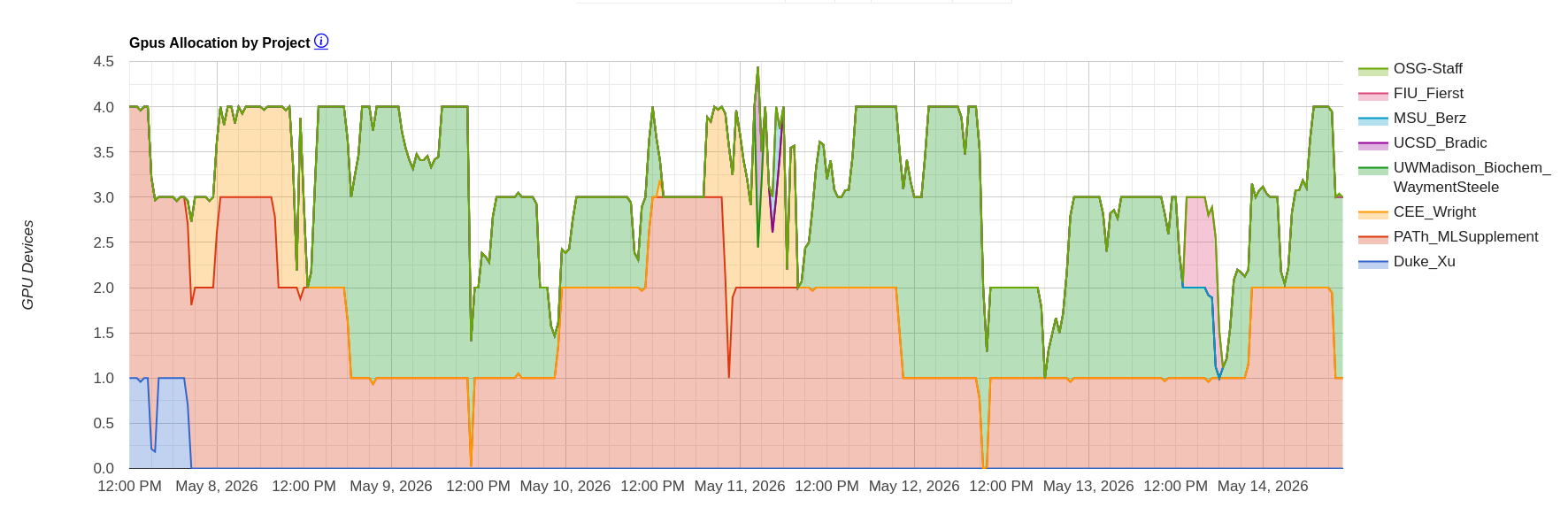

In addition to any internal validation processes that you may have, the OSG provides monitoring to view which communities and projects within said communities are accessing your site, their fields of science, and home institution. Below is an example of the monitoring views that will be available for your cluster.

To view your contributions, select your site from the Facility dropdown of the Payload job summary dashboard. Note that accounting data may take up to 24 hours to display.

Reference

User accounts

Each resource pool in the OSG Consortium that uses Hosted CEs is mapped to your site as a fixed, specific account; we request the account names are of the form osg01 through osg20.

The mappings from Unix usernames to resource pools are as follows:

Username	Pool	Supported Research
osg01	OSPool	Projects (primarily single PI) supported directly by the OSG organization
osg02	GLOW	Projects coming from the Center for High Throughput Computing at the University of Wisconsin-Madison
osg03	HCC	Projects coming from the Holland Computing Center at the University of Nebraska–Lincoln
osg04	CMS	High-energy physics experiment from the Large Hadron Collider at CERN
osg05	Fermilab	Experiments from the Fermi National Accelerator Laboratory
osg07	IGWN	Gravitational wave detection experiments
osg08	IGWN	Gravitational wave detection experiments
osg09	ATLAS	High-energy physics experiment from the Large Hadron Collider at CERN
osg10	GlueX	Study of quark and gluon degrees of freedom in hadrons using high-energy photons
osg11	DUNE	Experiment for neutrino science and proton decay studies
osg12	IceCube	Research based on data from the IceCube neutrino detector
osg13	XENON	Dark matter search experiment
osg14	JLab	Experiments from the Thomas Jefferson National Accelerator Facility
osg15 - osg20	-	Unassigned

For example, the activities in your batch system corresponding to the user osg02 will always be associated with the GLOW resource pool.

Security

OSG takes multiple precautions to maintain security and prevent unauthorized usage of resources:

• Access to the OSG system with SSH keys are restricted to the OSG staff maintaining them
• Users are carefully vetted before they are allowed to submit jobs to OSG
• Jobs running through OSG can be traced back to the user that submitted them
• Job submission can quickly be disabled if needed
• Our security team is readily contactable in case of an emergency: https://osg-htc.org/security/#reporting-a-security-incident

How to Get Help

Is your site not receiving jobs from an OSG Hosted CE? Consult our status page for Hosted CE outages.

If there isn't an outage, you need help with setup, or otherwise have questions, contact us.
